Singular +

Cosmology Series

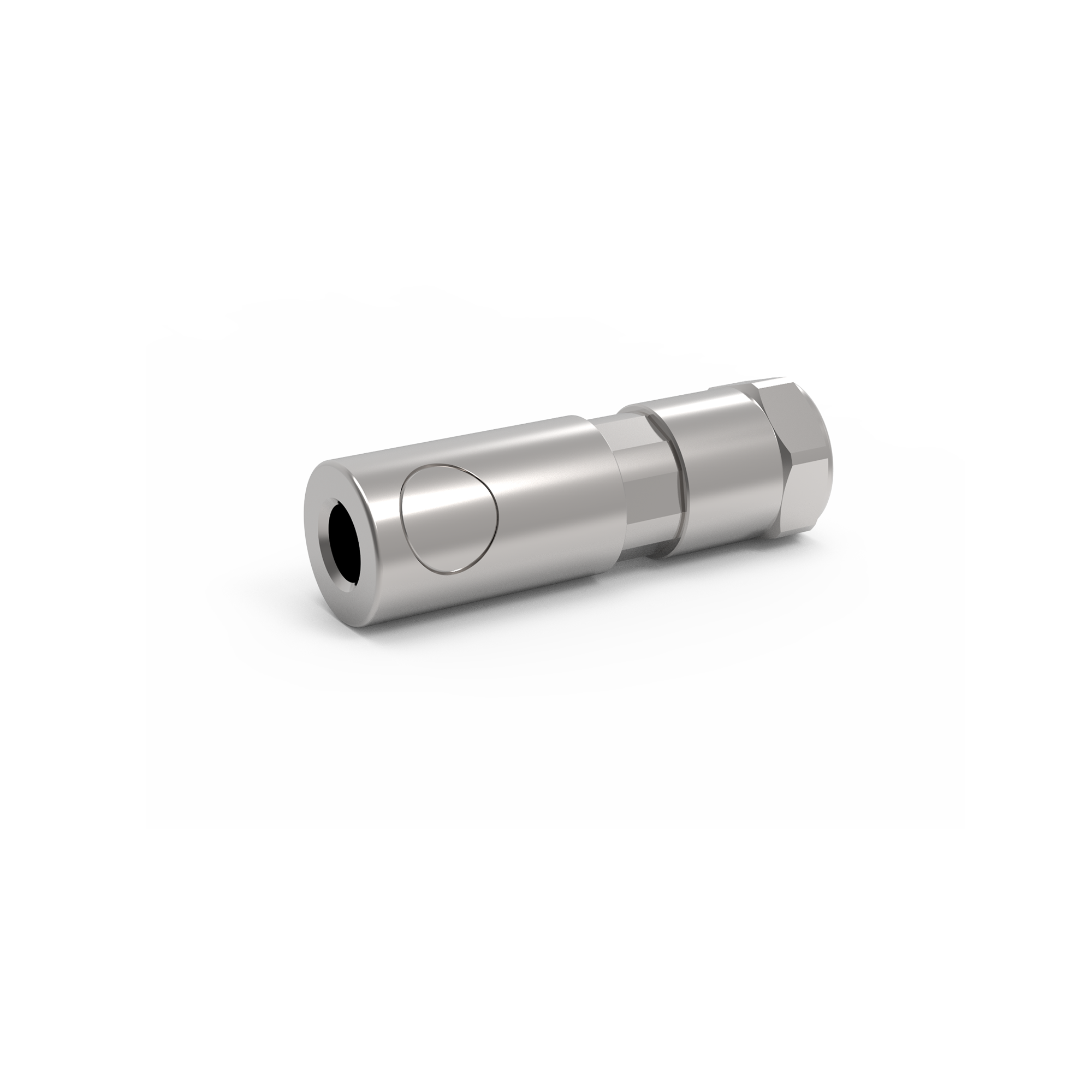

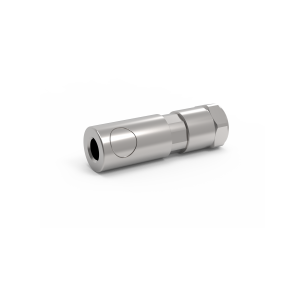

End connector with QUICK connection

Singular + is a single end connector for high pressure hose’s closure, usually temporary, made of high quality AISI316L stainless steel.

Description:

Singular + is a single end connector for high pressure hose’s closure, usually temporary, made of high quality AISI316L stainless steel.

Instant QUICK connection provides durable connection with White Ray SS Hoses’ fitting. Connection / disconnection can be made manually without using special tools.

Singular + end connector can be mounted by the Mounting clip comes standard with the supply package or it can be left loose.

Attention! Disconnection of QUICK connector should be done without water pressure.

Top shape Bottom shape
Advantages

Advantages:

Technical information:

Dimensions:

52 mm х 18 mm х 16 mm (LxWxH)

Weight:

60 g

Max. pressure:

20 MPa

Material:

AISI316L stainless steel

Connecrions:

QUICK female

Mounting

1Open mounting:

Singular + end connector can be mounted by the mounting clip comes standard with the supply package or it can be left loose.
