Binary +

Cosmology Series

Straight QUICK connector

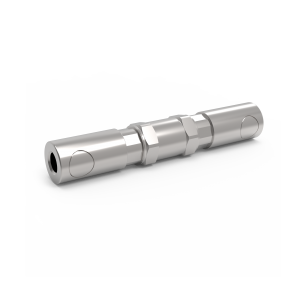

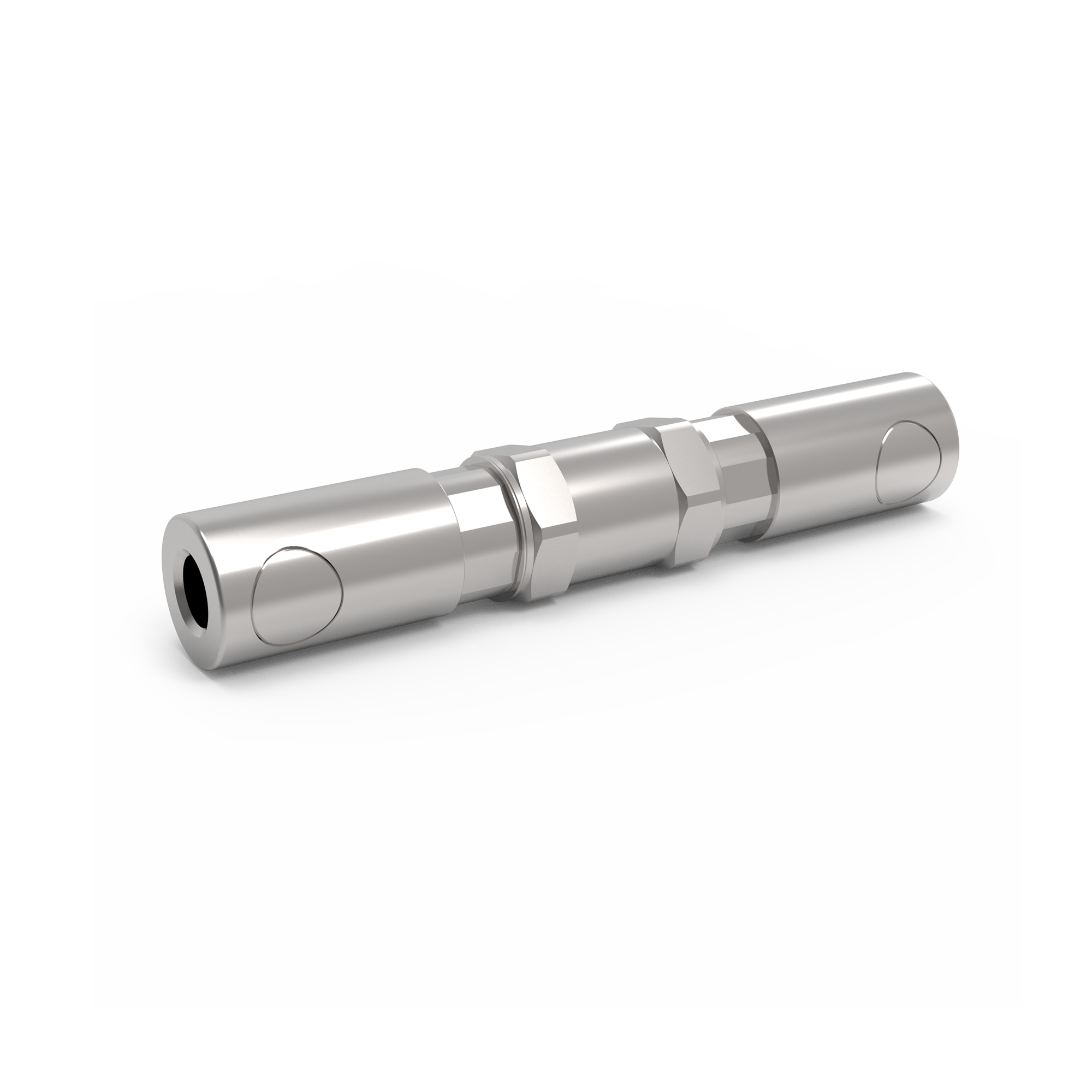

Binary + is a straight fitting made of high quality AISI316L stainless steel for high-pressure hoses’ extension for the purpose of the length increase.

Description:

Binary + is a straight fitting made of high quality AISI316L stainless steel for high-pressure hoses’ extension for the purpose of the length increase.

Instant QUICK connectors (2 pcs) on both sides provide durable connection of feed and outfeed White Ray SS Hoses. Inlet and outlet hoses can be connected to any connector.

Connection and disconnection is made by hands with a slight press without using tools. Sraight Binary + connector can be mounted by the Mounting kit comes standard with the supply package or it can be left loose.

Attention! Disconnection of QUICK connector should be done without water pressure.

Top shape Bottom shape
Advantages

Advantages:

Technical information:

Dimensions:

94 mm х 18 mm х 16 mm (LxWxH)

Weight:

105 g

Max. pressure:

20 MPa

Material:

AISI316L stainless steel

Connections:

2 x QUICK female

Mounting

1Open mounting:

Binary + connector can be mounted by the mounting kit comes standard with the supply package or it can be left loose.
